Carbon Trinity Hybrid Valve Amplifier
Market-leading, award-winning Fatman system with added USB input and sub-woofer output.

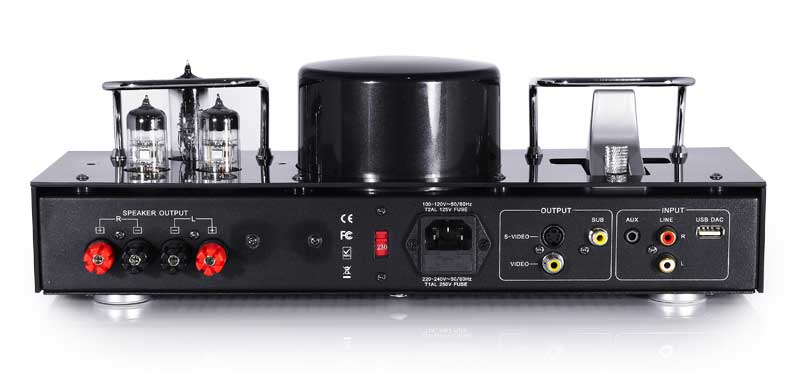

The Carbon Trinity is a one-piece hybrid vacuum tube amplifier with on-board iPod/iPhone dock. There is one pair of RCA connections, a 3.5mm stereo input and new third input on a USB connector so you can run audio direct from your laptop or CPU direct into the amplifier. It�s also got a sub-woofer output.
The Carbon Trinity has a power rating of 25w per channel and comes with a full function remote control for managing all
iPod/iPhone menu instructions.
A logical upgrade to anyone�s home audio system. Sleek. Slick. Sassy.
Available at Planet Gizmo
Main Features
- iTube Vacuum Tube Amplifier with integrated Dock for Apple iPod
- Valve processing gives warm, rich, audio characteristics

Specifications
- Power Output: 25Wx2
- Frequency Response: 20Hz - 20KHz (±1.5Db)
- Distortion: ≤0.5%
- Signal-To-Noise Ratio: ≥86Db
- Input Sensitivity: 200mV
- Input Impedance: 100KΩ
- Output Impedance: 4Ω, 8Ω
- Sub Out: Yes
- Source Inputs: 1xRCA Pair, USB, 1x3.5mm Aux
- Tubes Used: 6E2 x 1, 6N2 x 2
- Power Supply: AC100~120V/50~60Hz, AC220~240V/50~60Hz
- Dimensions: Amp (WxHxD) 374x205x155mm
- Weight Amp: 5.8KGs
- Amp Type Hybrid

iPod Compatibility
